Standard vertical injection molding system
Features:
·ARM processor, stable system, low system failure rate
·Stability of the system, reliable quality
·Multilayer protection, safe and reliable
·Various hardware resources, good expansibility
·Multiple algorithmic control, high accuracy, high level of intellectualization
·User software redevelopment supported to protect clients’ core technology
Functional specifications：
| Project | Specifications |
| Brand | Porcheson |
| Host model | PS860BM |
| Programming software | PsMagic V3.28 (support user’s secondary development,
language: ladder diagram +C language) |
| Performance | CPU: ARM; 32-bit CPU; program scanning cycle: 1.2ms |
| Analog input | Position transducer: 0～2.5V, 3 channels single transducer,
precision: 12bit, Sampling period: 100KSPS |
| Pressure detection: 3 channels 0~20MA | |
| Temperature control | 4segments, self-learning PID control, display precision: 0.1℃,
sensor type: K (default),J |
| Voltage output | 2 channels 16bit 0→10v with the fastest rising speed being 300ms |
| Current output | 2 channels closed loop（0-1A），1 channels PWM（0-1A） |
| Input I | 27 channels wet contact (NPN), 2 channels differential scrambler（2channels standard: AB) ，Short circuit protection |
| Output O | 28 channels high power transistor with direct fuel valve, drive capability 4.5A (full load test) |
| 10 channels other 24V low power output：motor, lubrication, etc. | |
| Communication interface | RS232、RS485、CAN |
| Working voltage | Service voltage: DC 24V |
| Environment | Working temperature: -10℃～50℃; storage temperature: -25℃～55℃; relative humidity: 15%～85% |
| Recommended type | Big or Middle vertical injection molding machines |
| Remarks | Parameters of the product may be changed due to technical update or improvement without prior notice. All ordered products and parameters are subject to the physical product. |

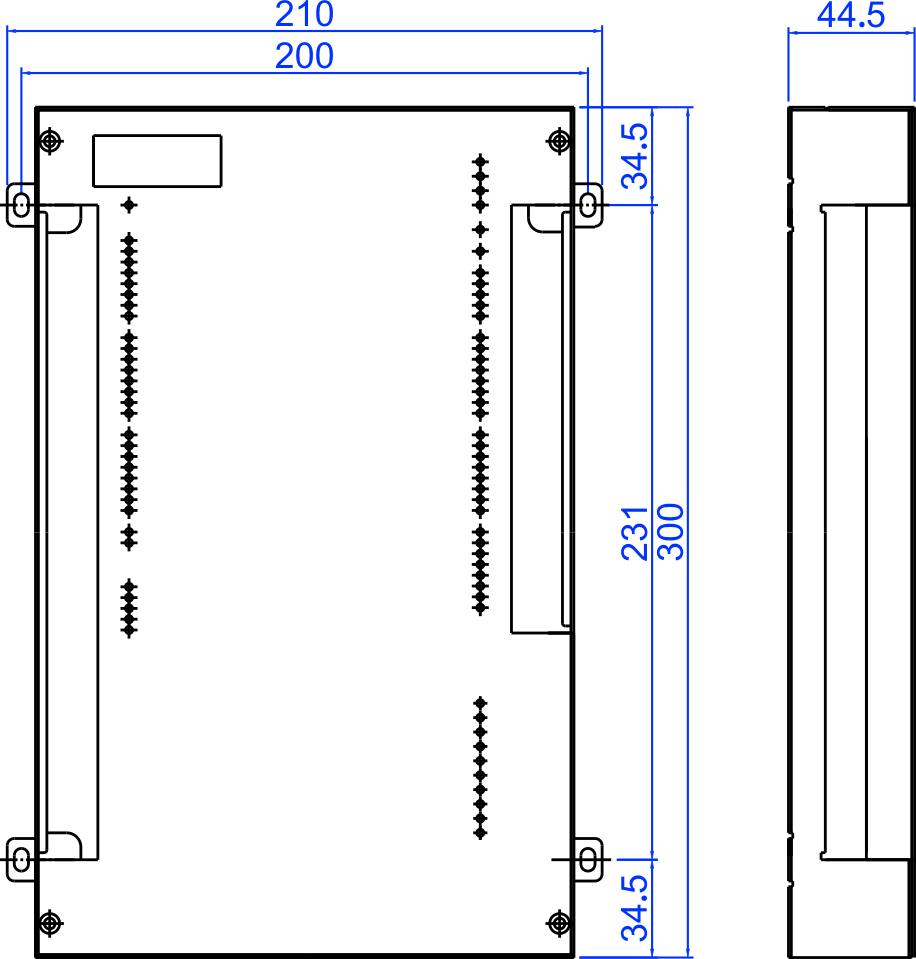

Installation size：
